PRODUCT MEM2400LED-LZ SERIES

MEM Lock™ Mechanical Electro Magnetic Locking Device

PRODUCT DESCRIPTION

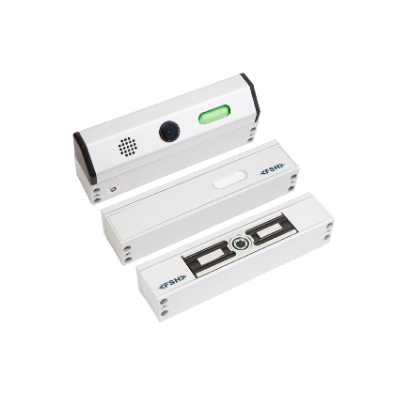

The innovative slimline MEM2400LED-LZ Mechanical Electro Magnetic Lock for inward opening doors has been designed as an alternative to standard magnetic locks. The MEM2400LED-LZ comes as a combination with L&Z-Brackets.



The patented MEM2400LED-LZ incorporates both magnetic and mechanical design principles to achieve a superior holding force of up to 1000kg. The MEM2400LED-LZ is capable of opening with up to 70kg side pressure on the door.



MEM Lock™ is recommanded to be used on doors <2400mm

Technical Specification





PART No.









MEM2400LED-LZ











LIGHT FEATURE









LED











FUNCTION









Surface mount

Inward opening doors including L&Z Bracket











HOLDING STRENGTH









Up to 1000kg











VOLTAGE/CURRENT









Dual Voltage 12/24VDC 12VDC/240mA 24VDC/120mA











APPROVALS









Up to 4 hour fire test. Contact Allegion for more details.











MONITORING









EW / LSS / DSS

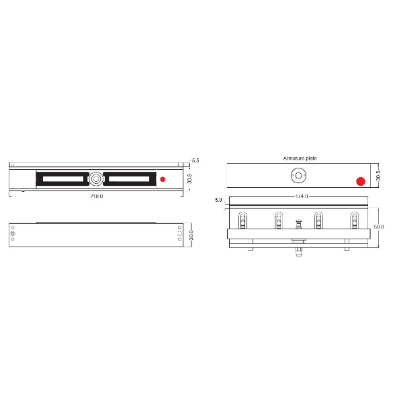

SIZE









MEM size L=218mm H=36mm D= 30mm

Armature Plate size L= 174mm H= 30.5mm D= 12.5mm
