PRODUCT VE1260

High Security Motorised Drop Bolt with Pre-load Capability EcoLock™

PRODUCT DESCRIPTION

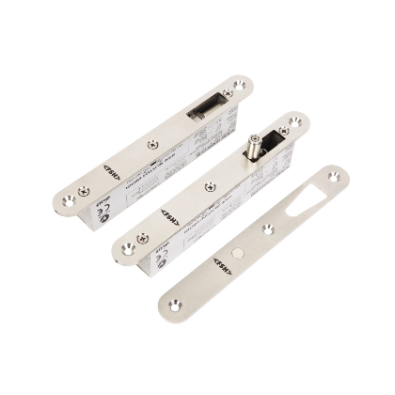

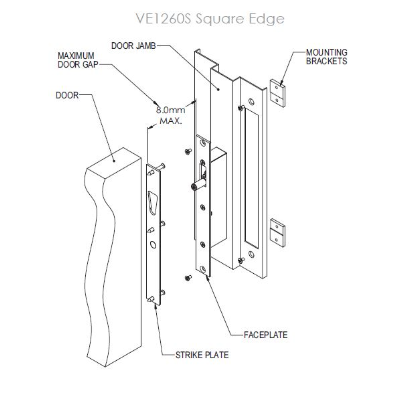

The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180° degree swing through doors.



The VE1260 is considered a “Green Product” as it consumes an inrush current of 290mA @ 12VDConly during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA @ 12VDC.



A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.



An optional LED red/green indicator unit is available.

Technical Specification





PART No.









VE1260









FUNCTION









Mortice Mount, power-to-lock/power-to-release field interchangeable,

up to 35kg of Pre-Load capability, unlocking and up to 6.5kg locking









HOLDING STRENGTH









Up to 1000kg









VOLTAGE/CURRENT









Multi Voltage 12-30VDC

Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load.

More side load = more current. See preload vs. current graph.
Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA)









APPROVALS









CE

C-Tick

Fire rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on fire door assemblies









MONITORING









Lock Status Sensor of the internal locking mechanism

Door Status Sensor Built-in Reed Switch, monitoring the door position









ENVIROMENTAL









Operational Temperature Range -20° to +60°C









DURABILITY

Exceeding Australian Standard AS4145.2-2008

400,000 operating cycles

Durability D7

DOOR MISALIGNMENT

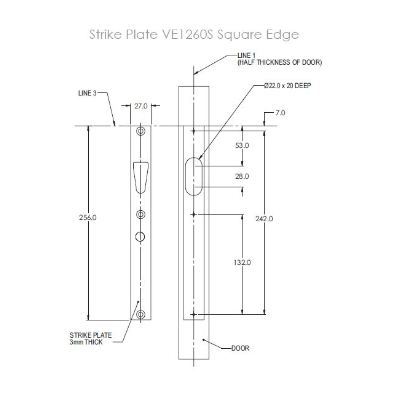

Standard Strike Plate + 4mm Special Strike Plate up to + 12mm
