FSH FSS1

HIGH SECURITY SENSORS

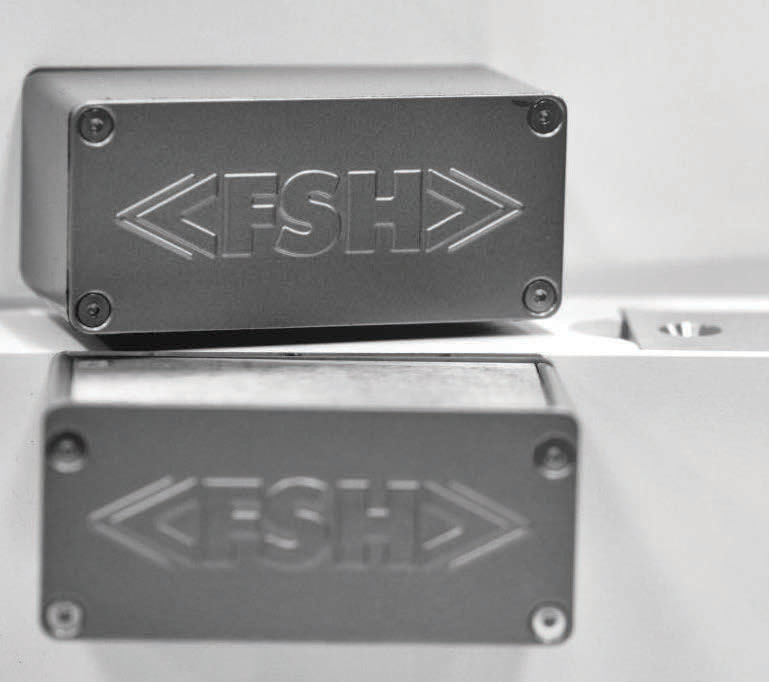

The FSS1 Series of High Security Door Monitoring Sensor are designed to provide a true high security solution for door position monitoring.

It is a state-of-the-art monitoring solution with a flush mount version for new construction, and surface mount version as a superior replacement for traditional magnetic balanced reed sensors.

SPECIFICALLY DEVELOPED

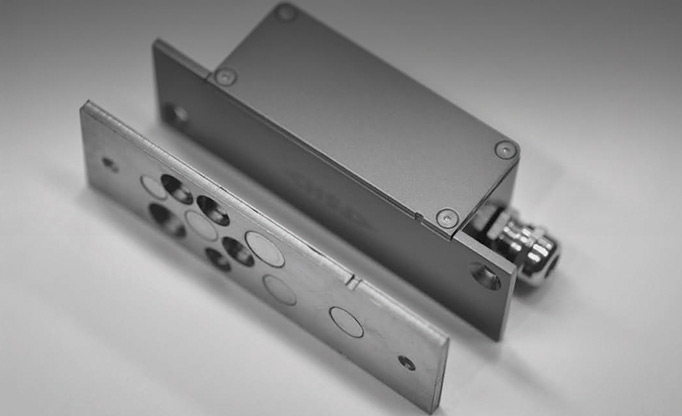

Specifically developed for high security applications in government, high risk and defence installations, the FSS1 Series High Security Door Monitoring Sensor consist of seven magnetic sensors that are used to detect a unique magnetic footprint from an array of magnets on the magnetic face plate. One sensor is used to detect the position of the magnetic face plate in relation to the device, while the other six sensors are used to determine the polarity, size, strength and position of the magnets on the unique magnetic face plate in relation to the memorised pattern.

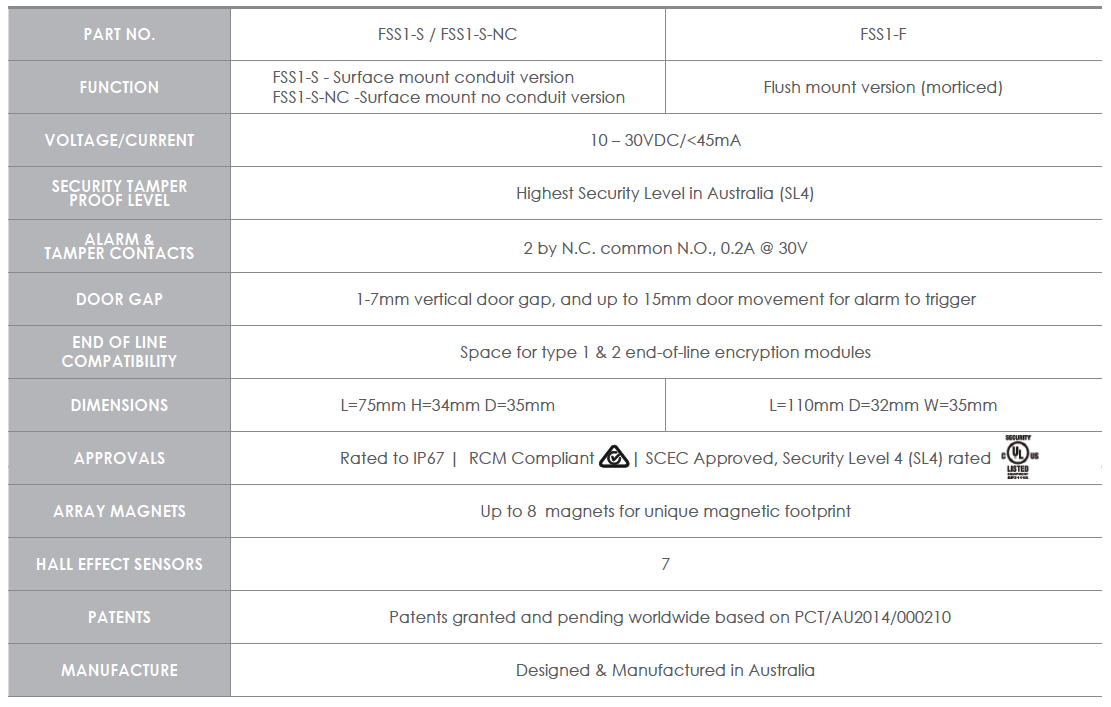

Technical Details

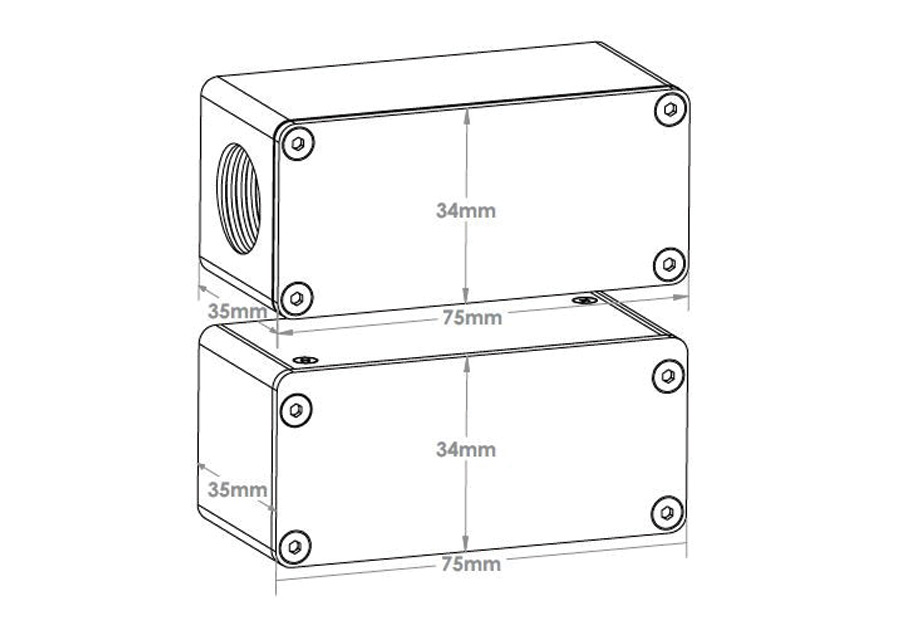

Product Dimensions

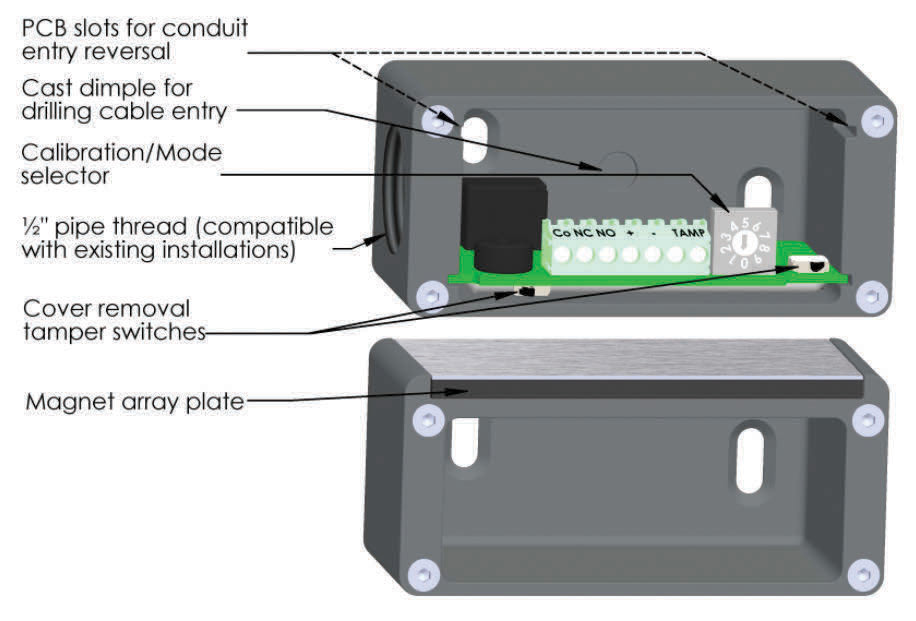

FSS1-S SURFACE MOUNT CONDUIT VERSION

FSS1-S-NC SURFACE MOUNT NON CONDUIT VERSION

The FSS1 is listed in the Australian Government Security equipment evaluated Product list (SEEPL) and UL listed to UL 634.2.

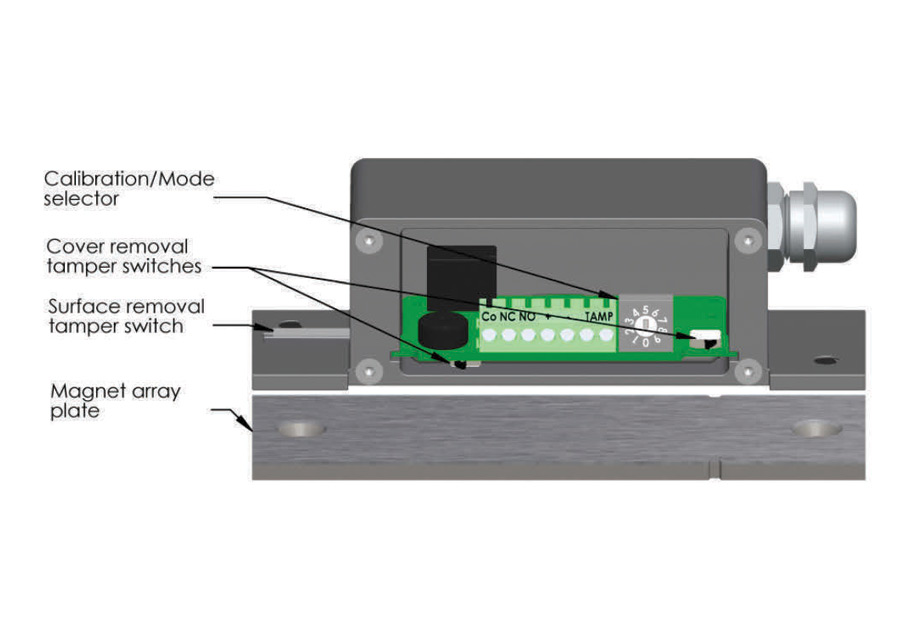

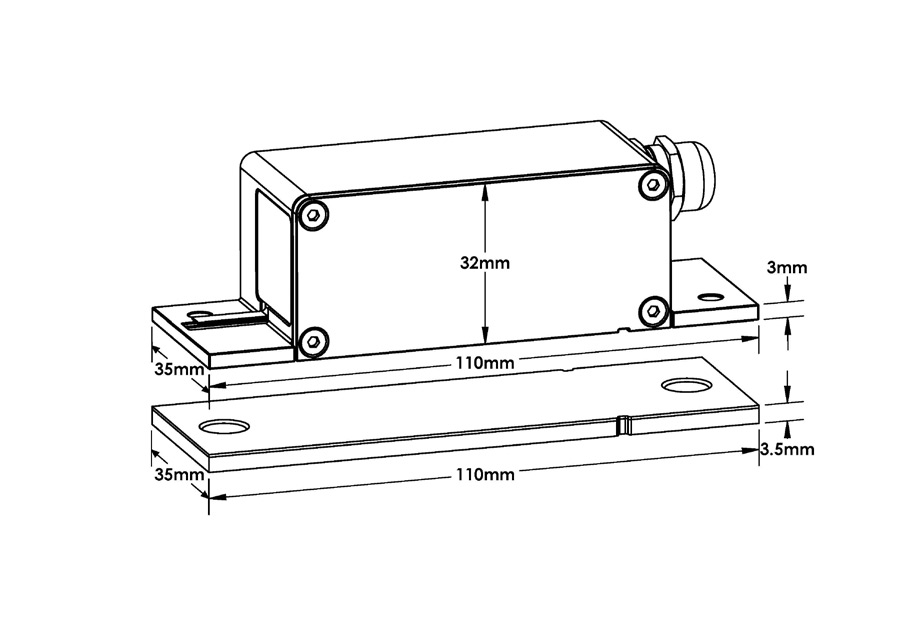

FSS1-F FLUSH MOUNT VERSION
