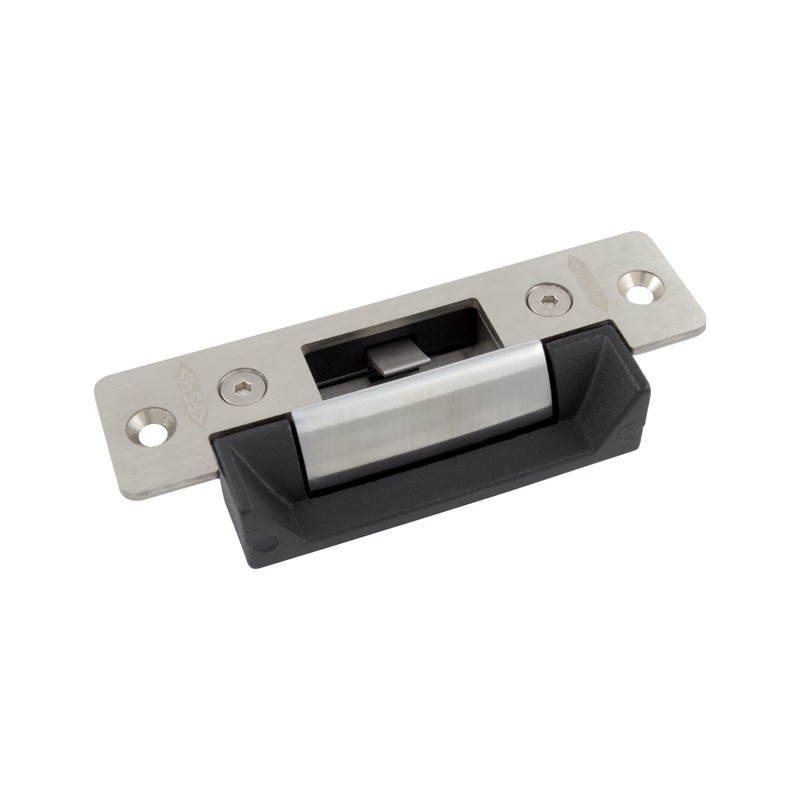

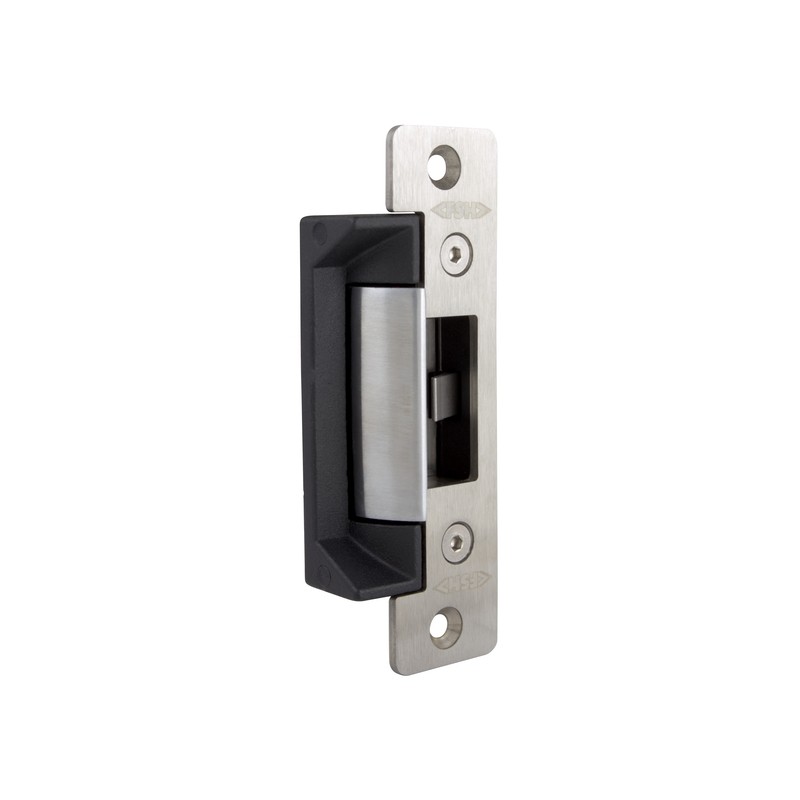

FES10 Series

Compact Electric Strike

PRODUCT DESCRIPTION

The FES10 Series electric strikes are designed for light commercial and residential applications. With a small ANSI footprint, the strikes accept either 12 or 24VDC and have been tested to a 4-hour fire rated in accordance with AS 1530.4:2005 (contact Allegion for more details).

The strikes are easily Power To Lock (PTL) / Power To Open (PTO) field changeable by simply changing over the barbell mechanism. The device is pre-drilled to cater for extension lips, comes with a 5 year warranty and has a holding strength of up to 1000kg.

The FES10M version has Door Status Sensor monitoring.  The FES10 is weather resistant to IP56 standard.

Technical Specification





PART No.



  FES10MFES10
FUNCTION

Mortise mount, Power To Lock/Power To Release

field changeable.

Input Voltage: 12/24VDC

Mortise mount, Power To Lock/Power To Release

field changeable.

Input Voltage: 12/24VDC



HOLDING STRENGTH



Up to 1000kgUp to 1000kg



VOLTAGE/CURRENT



Dual Voltage 12VDC/200mA 24VDC/100mADual Voltage 12VDC/200mA 24VDC/100mA



APPROVALS



Up to 4-hour fire rated in

accordance with AS 1905

(contact Allegion for more details)


Up to 4-hour fire rated in

accordance with AS 1905

(contact Allegion for more details)




MONITORING



Door Latch monitoringNon monitored

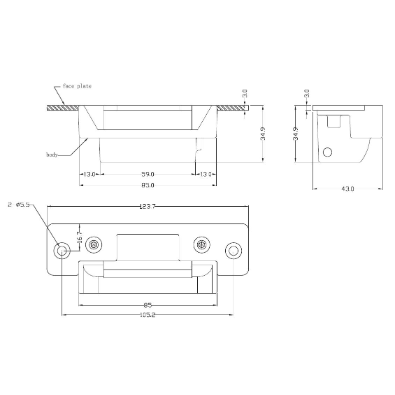

SIZE



L= 125 x W= 42 x D= 35mmL= 125 x W= 42 x D= 35mm



IP RATING



N/AWeather resistant iP56
