FES20 SERIES

High Security Electric Strikes
Australian Footprint

PRODUCT DESCRIPTION

The patented FES20 Series high security electric strikes are manufactured from stainless steel, accept voltages from 12 to 36VDC and have a simple and unique Power To Lock (PTL) / Power To Open (PTO) field selectable mechanism, with no loose screws or pins.

All FES20 strikes come with a 10mm strike lip as standard and are also pre-drilled for extension lips. The FES20M monitored electric strike provides full monitoring including LSS (Lock Status Sensor), DSS (Door Status Sensor) and ATS (Anti-Tamper Sensor).

Technical Specification









PART No.

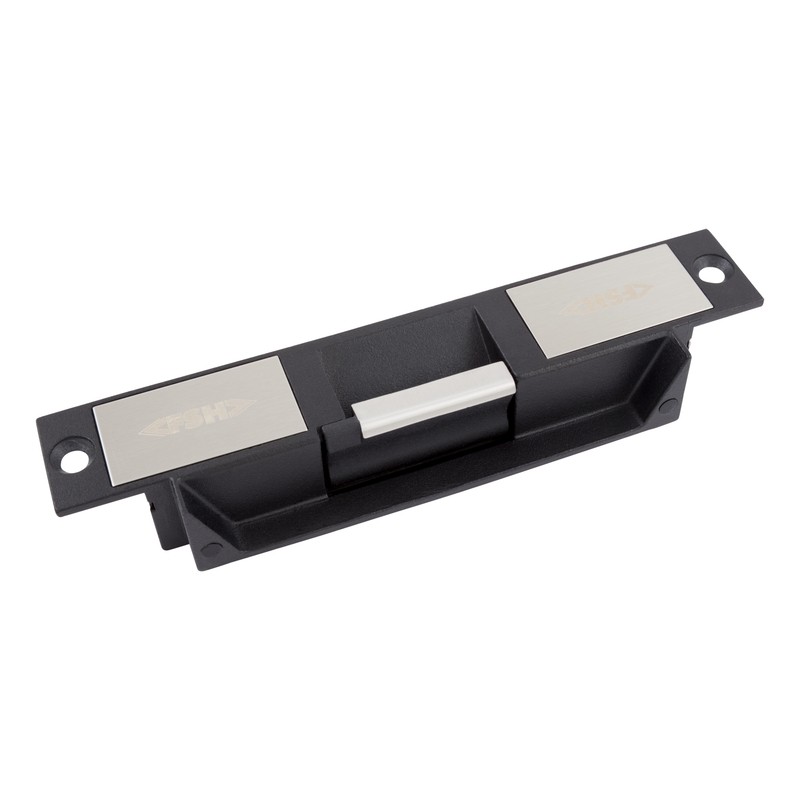

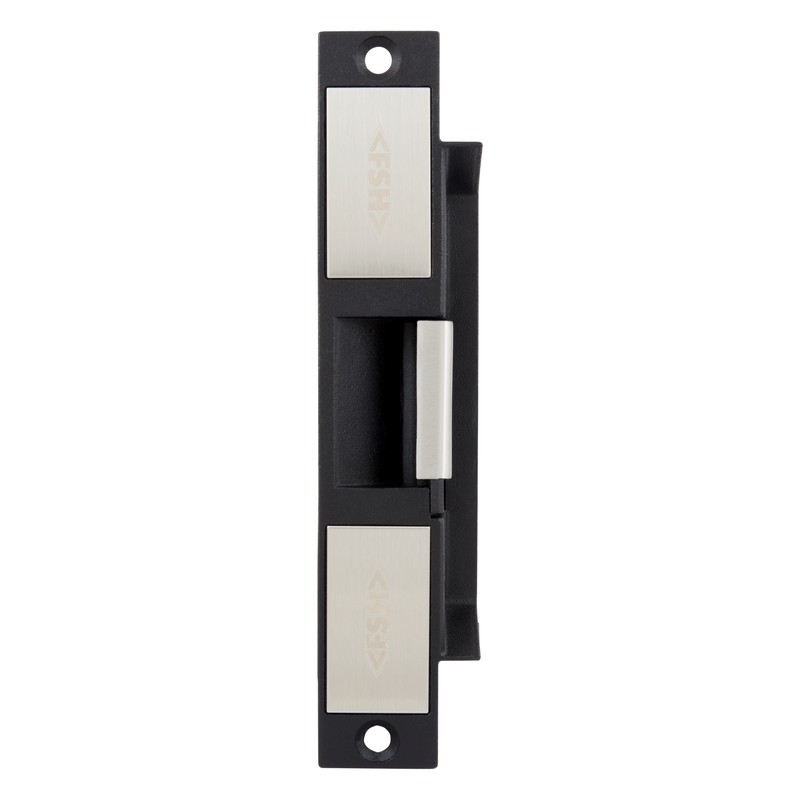

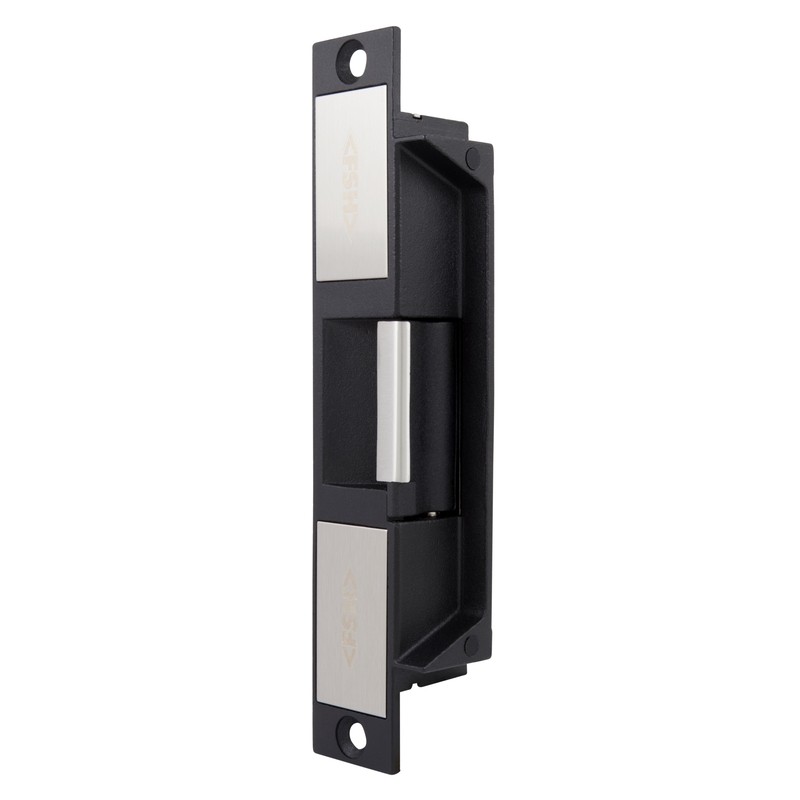

FES20

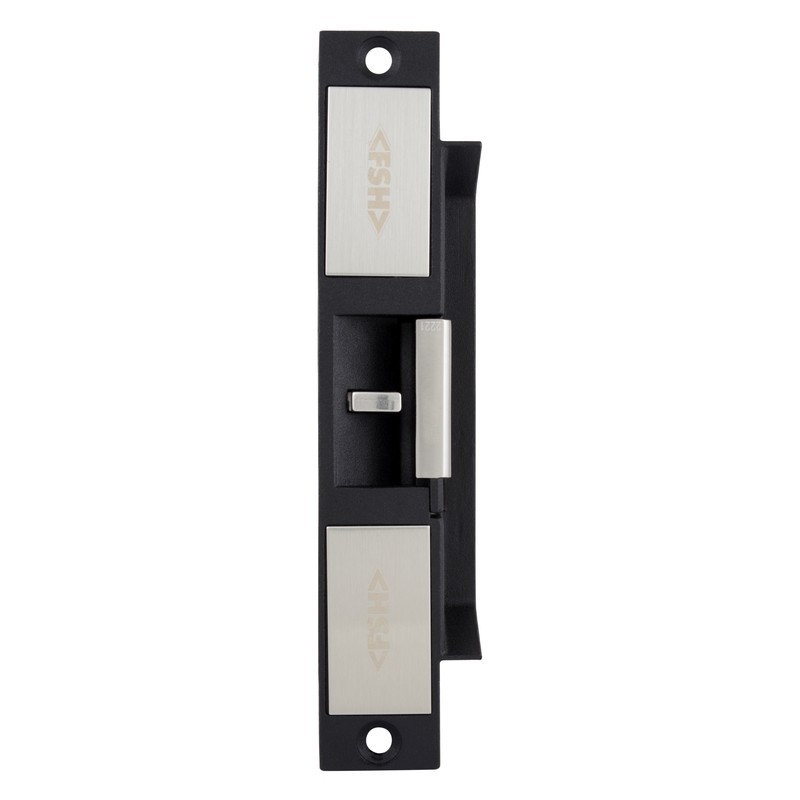

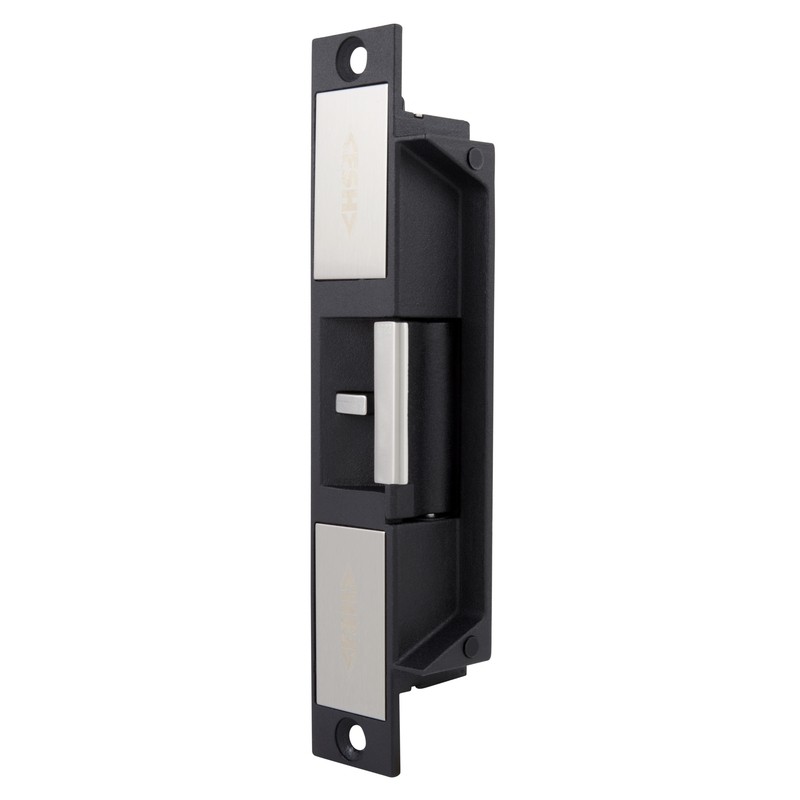

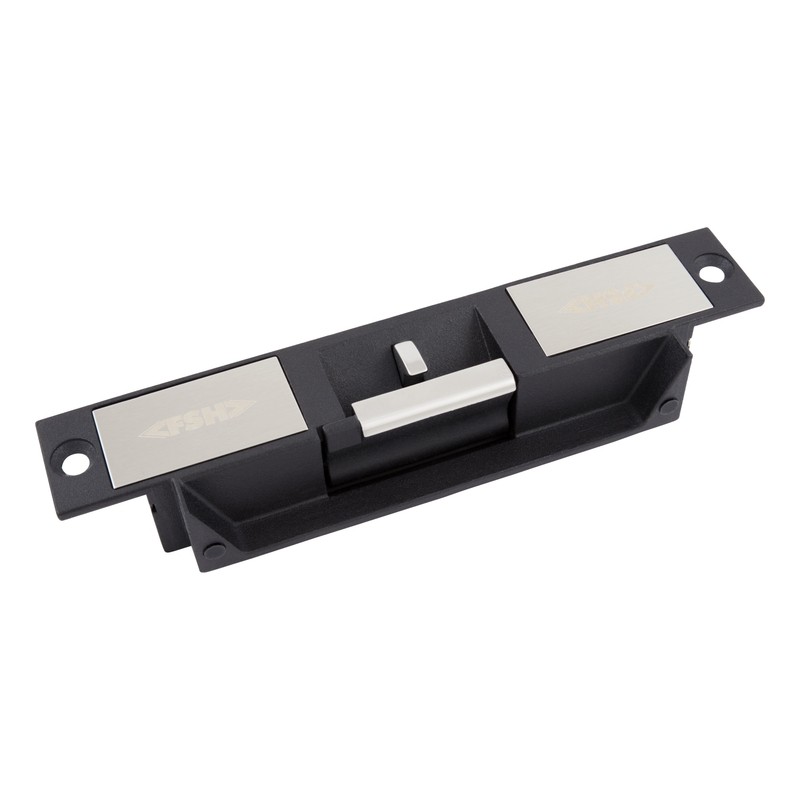

FES20M









FUNCTION



Mortise mount, Power To Lock/Power To Release site selectable. Input Voltage: 12-36VDCMortise mount, Power To Lock/Power To Release site selectable. Input Voltage: 12-36VDC



HOLDING STRENGTH





Up to 1200kgUp to 1200kg
VOLTAGE/CURRENT



12VDC= 220mA 24VDC= 120mA 36VDC= 80mA



12VDC= 220mA 24VDC= 120mA 36VDC= 80mA

APPROVALS



Up to 4-hour fire rated in

accordance with AS1905:1:2015

(contact Allegion for more details)





Up to 4-hour fire rated in

accordance with AS1905:1:2015

(contact Allegion for more details)

SCEC Approved for secure area



MONITORING



Non monitored

FES20M Fully monitored, door latch monitoring (DSS)

Lock Status Monitoring (LSS)

Strike installed in frame (ATS)
