HL1260

High Security Motorised Hook Lock

PRODUCT DESCRIPTION

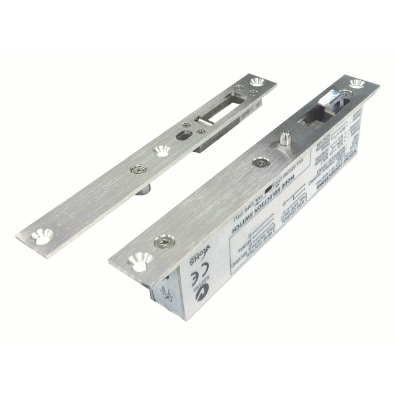

The patented HL1260 is a high torque motor driven hook lock for a sliding door. It can be installed vertically in the door frame (lock style) with the strike plate mounted on the edge of the door. Alternatively, there is a surface mount box for the strike plate and/or lock for a sliding door.

The HL1260 consumes an in-rush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), it consumes current less than 15mA@12VDC.

The HL1260 hook lock should not be exposed to wind and weather as it is not IP rated.

We recommend operating the product in 3-Wire-Mode (See installation manual).

Technical Specification

PART No.

HL1260

FUNCTION

Mortice Mount, Power To Lock To Lock (PTL)/Power To Open (PTO) field changeable



HOLDING STRENGTH



Up to 650kg



VOLTAGE/CURRENT



Multi Voltage 11-30VDC

Active Mode: Locking/Unlocking cycle current is 0.29A to0.85A depending on the load

Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA)



APPROVALS

CE

Australian EMC standard compliant

MONITIORING

Lock Status Sensor of the internal locking mechanism

Door Status Sensor Built-in Reed Switch, monitoring the door position

ENVIROMENTAL

Operational Temperature Range -20 to +60C

DURABILITY

Exceeding Australian Standard AS4145.2-2008

400,000 operating cycles

• Durability D7

STRENGTH

Meeting Australian Standard AS4145.2-2008

• Static Strength S8

• Impact Strength S8
